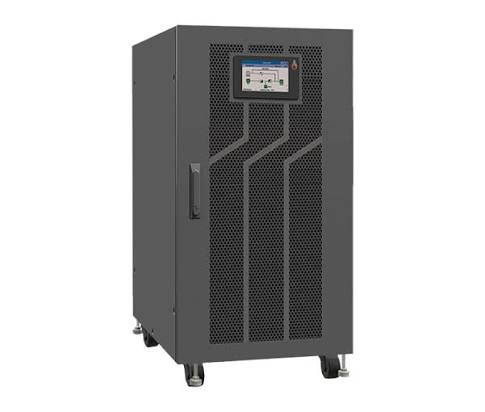

An online transformerless UPS cabinet for three-phase power backup, with modular expansion and hot-swappable modules.
Specifications
Model: HPM3300E-30
Cabinet capacity: 30kVA; power module rating: 10kVA; maximum 3 modules
Three-phase input and output: nominal 380/400/415V, 3Ph+N+PE
Series output power factor: 1.0, subject to battery configuration
AC efficiency: up to 95.8%; ECO efficiency: up to 99%, typical series values
Standard 7-inch colour touch LCD
Communication: RS232, RS485 and dry contact; optional SNMP card
Cabinet dimensions: 600 × 850 × 1200 mm
Operating temperature: 0–40°C
Installed module quantity, battery configuration, runtime and supplied accessories must be confirmed with your quotation. This series is not compatible with energy-feedback loads.
Contact Quality Computers LLC on WhatsApp for UAE pricing, availability and UPS sizing assistance.
